ULTRASOUND OF ECHOGENIC INTRACARDIAC FOCI



  • Small brightly echogenic foci without distal acoustic shadowing (1-3)

  • Echogenicity is similar to or greater than surrounding bone (3). Should not be called an echogenic intracardiac focus if the echogenicity is less than bone and no defect is demonstrated on the color flow images.

  • Do not produce acoustic shadowing.

  • Occasionally referred to as a "golf ball".
  • Exclude hyper-echogenicity of the ventricular walls or the moderator band in the right ventricle as the cause.
  • An echogenic intracardiac focus has been associated with an increased risk of Down syndrome and trisomy 13 (8), trisomy 18 and monosomy X (9-12).
  • Found in 2% of normal fetuses.
  • Bromley and co-workers 1995(13).
    • Incidence in normal fetuses = 4.8%
    • Incidence in Down syndrome = 18%
  • Increased risk of Down syndrome = 4-fold.
  • Location (1).
    • Left Ventricle (92.8%)
      • Anterior papillary muscle.
      • Cardiac apex.
      • Interventricular septum.
      • Posterior papillary muscle.







Video clip of an echogenic intracardiac focus - LV

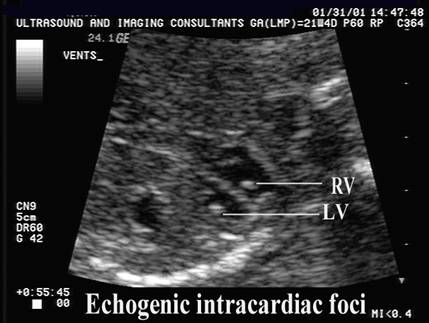

    • Right Ventricle (4.8%)
      • Anterior papillary muscle.
    • Left and Right Ventricles (2.4%).
    • Location within the atria have not been reported.
    • Location has been suggested as an important factor in the risk of aneuploidy (7).

-          Normal karyotype (88% in LV;12% in RV or bilateral)

-          Aneuploid fetuses  (78% in LV;22% in RV or bilateral)

-          Incidence of Down syndrome is higher among fetuses with RV or bilateral echogenic foci).

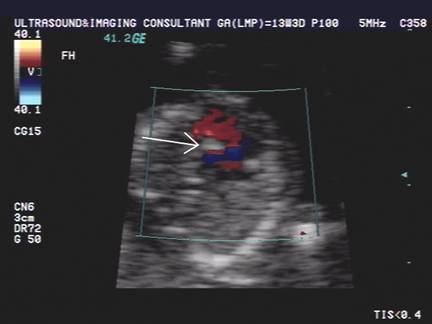

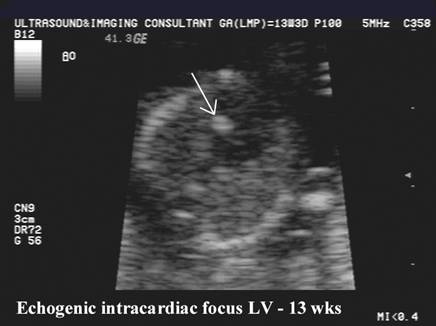

  • Usually seen at the mid-trimester scan but can be seen at 12-13 weeks of gestation.

  • Size.
    • Usually 1-4 mm.
    • Largest benign echogenic intracardiac focus reported is 6mm.
    • 36% increase in size over time, 12% decrease and 51% remain unchanged (1).
    • Complete resolution at the time of neonatal echocardiography in (40-48% of cases (2,4).

  • Single or multiple (6-11%) (5,6).

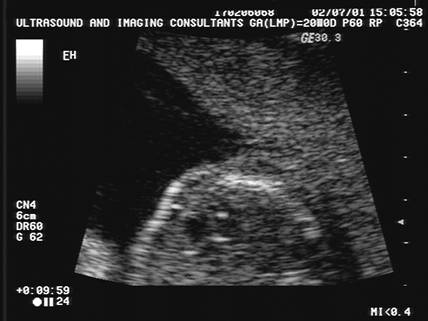

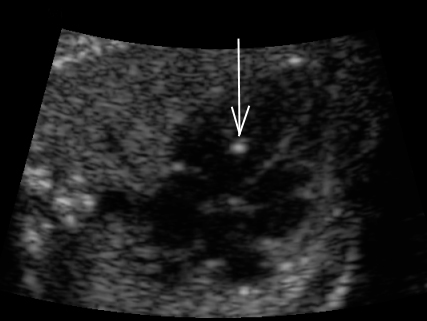

Single EIF in left ventricle

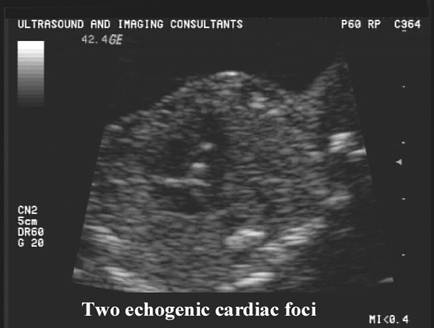

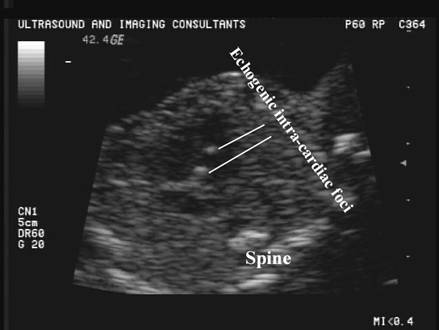

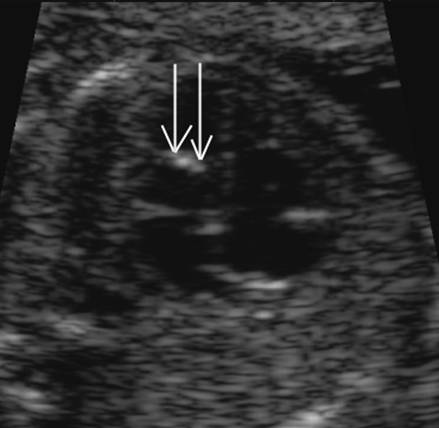

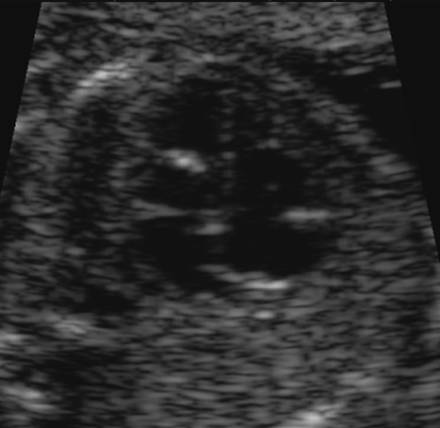

Two echogenic EIF left ventricle

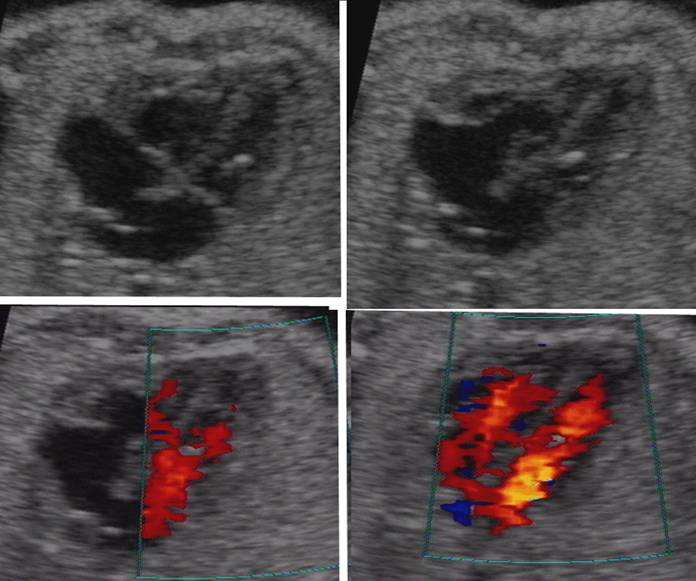

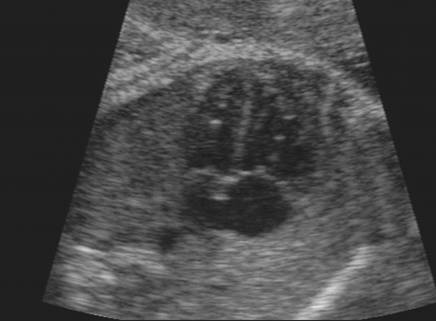

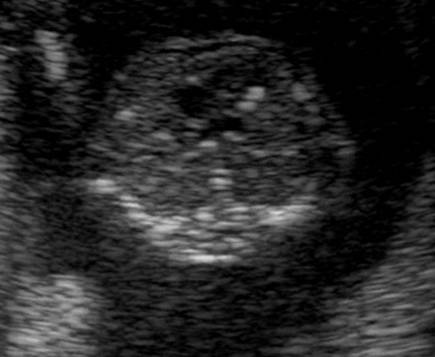

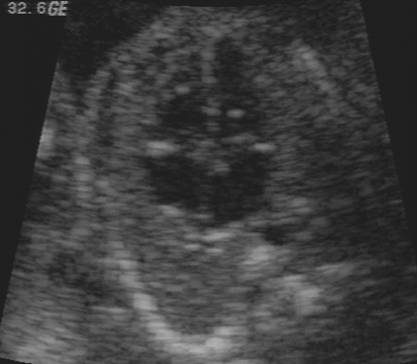

Multiple EIF left ventricle

  • Move synchronously with the valve leaflets throughout the cardiac cycle.
  • Unusual echogenic foci:
    • Diffuse echogenic areas of the endocardium, interventricular septum, ventricular wall or atrioventricular valves in 9/44 second trimester fetuses with echogenic foci (8).
      7 fetuses had adverse pregnancy outcome, 4 had cardiac dysfunction or heart defects, one case of missed abortion, metabolic disease and trisomy 13.
    • 9/65 second trimester fetuses (6) had echogenic foci of unusual size, shape, number, structure or location. Three had foci of 7-9 mm, four had multiple foci in the ventricles, one had a "double focus" and one had a "triple" focus. No association in this study of heart disease, chromosomal abnormality or poor outcome.

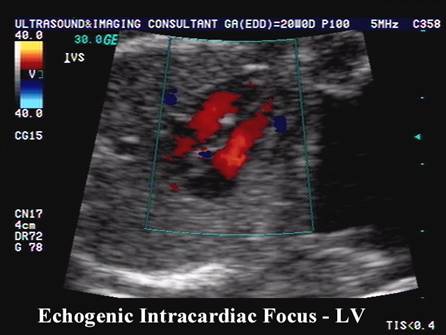

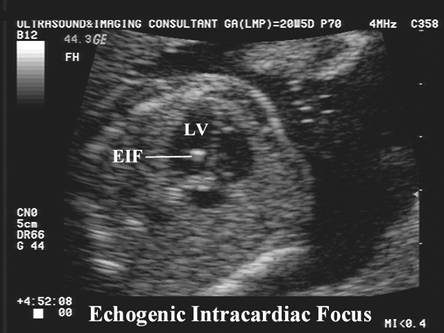

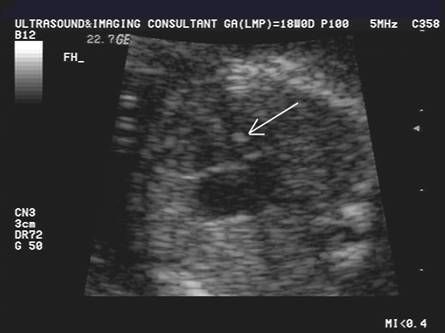

Echogenic Intracardiac focus in the left ventricle.



Note, by playing with the gain settings one can determine that the density of the echogenic focus is similar to that of bone.

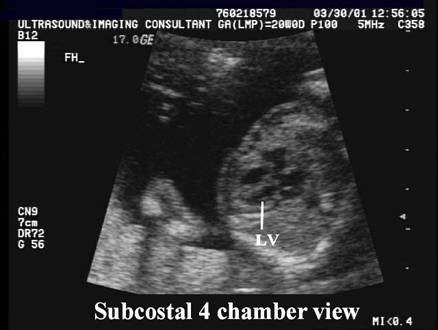

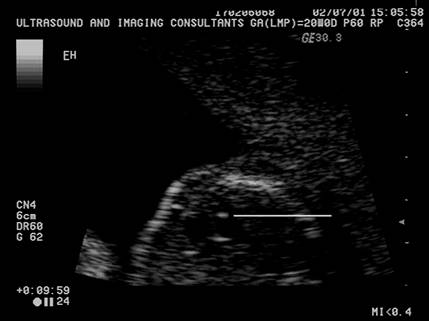

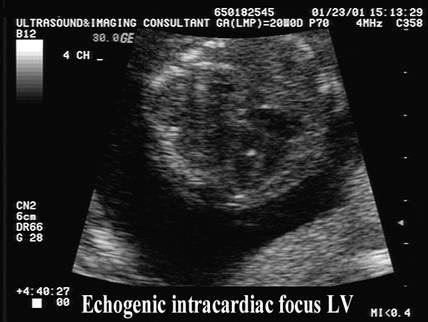

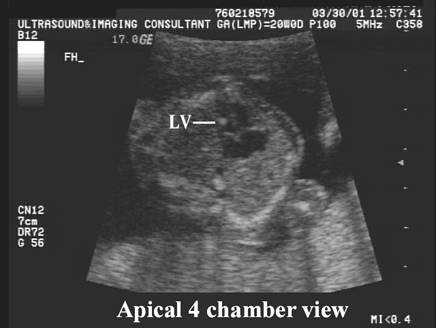

  • Echogenic focus best visualized on the apical four chamber view. It may be hidden in the specular reflections of the ventricles in the subcostal four chamber view.



  • An echogenic linear band may be seen in the ventricles and may cause a defect in the color flow, but should not be called an intracardiac focus.

These are not true echogenic intracardiac foci

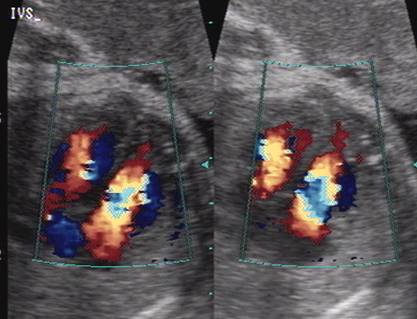

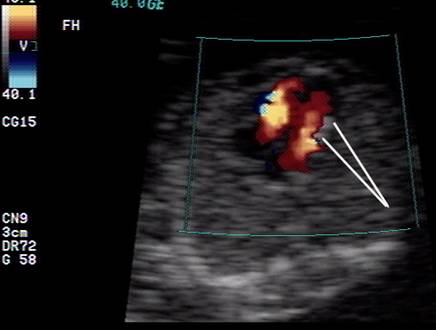

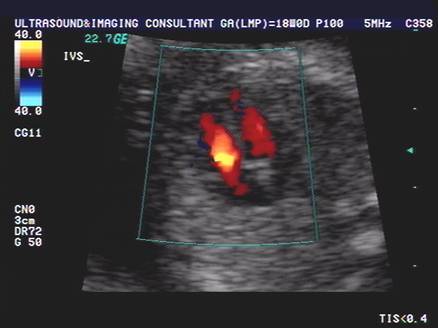

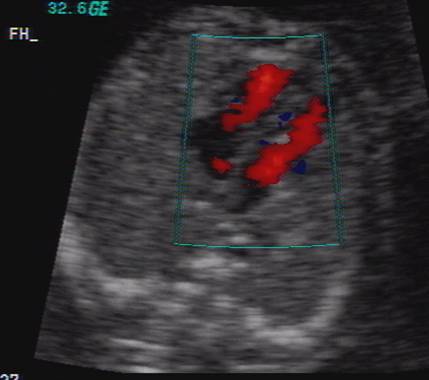

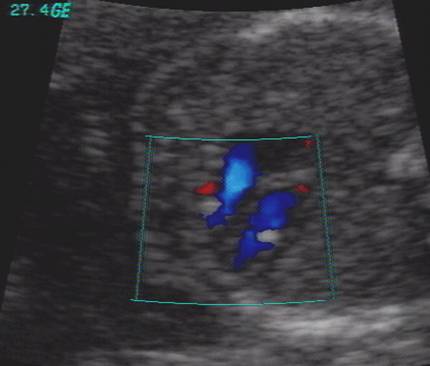

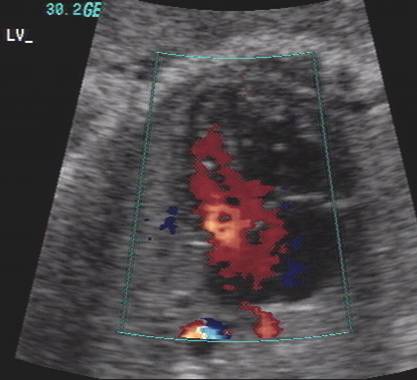

Small defects in the color flow





Roberts and Genest (1992) (12). Prospective analysis of histological sections of 415 fetuses, found that a discrete central papillary muscle calcification was significantly higher in fetuses with chromosomal aneuploidy (16% of fetuses with trisomy 21 and 39% of fetuses with trisomy 13 versus 2% of control cases).
At this time it is not certain whether papillary muscle calcification is always evident as an echogenic focus on ultrasound.
