CLUBFOOT DEFORMITY
(TALIPES EQUINOVARUS)
|
Clubfoot is the most common congenital abnormality of the ankle and foot.
Prevalence: 1 per 1000 live births.
Clubfoot is a combination of 4 deformities:
- Hindfoot equinus (reversed
calcaneal pitch).
- Hindfoot varus (inward
rotation; talocalcaneal angle of almost zero on AP view with bones
parallel to each other).
- Forefoot adductus (axis of
first metacarpal deviated medially relative to axis of talus).
- Variable forefoot cavus
(plantar flexion).
21.5 weeks of gestation
|
|
|
31 weeks of gestation
|
|
|
|
|
|
|
Clinical classification (1):
- Postural talipes – talipes
that will correct with the normal growth of the child.
- Moderate talipes – talipes
that requires conservative measures to correct, but may require surgical
intervention.
- Severe talipes – talipes that
does not respond to conservative measures and may be resistant to surgical
intervention.
The feet are often classified retrospectively and no study
has investigated the reliability of trying to classify them antenatally.
Link
to Etiology
Link
to Pathogenesis

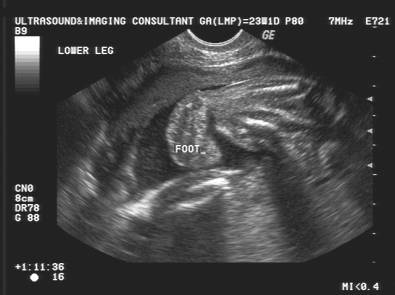

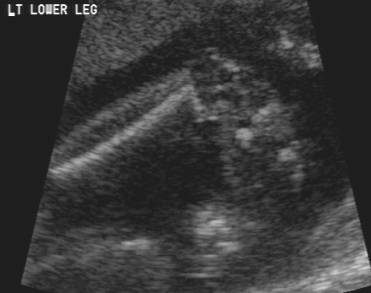

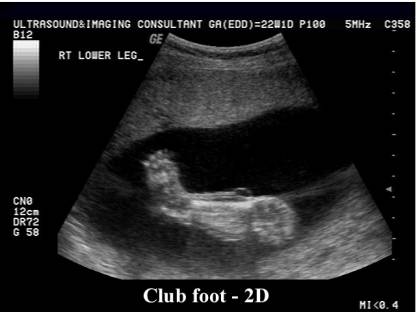

- Diagnosis is based on
demonstrating the tibia and fibula in the same plane as the lateral aspect
of the foot, with the foot extended and inverted.
- Persistent (true clubfoot),
transient (fetus can transiently turn foot into a position that simulates
clubfoot) or relapsing (resolves in one scan and recurs in follow-up
scans).
- Unilateral or bilateral.
- Classifies as postural,
idiopathic or complex (other anomalies present which may not always be
evident on antenatal scanning).
- The gestational age at which
the etiology, rather than the diagnosis of the talipes, is confirmed is
extremely important:
- Most complex cases
(75%) are diagnosed at the 18-23 week scan (2).
- The remainder were
diagnosed when the classification was changed from idiopathic to complex,
either when scanned again after 24 weeks gestation (19%) or postnatally
(6%).
- In this study 68 of
the cases of talipes thought to be idiopathic at the 18-23 week scan,
13(19%) were subsequently found to be complex. This is important for
counseling parents.
- Scan at 16-18 weeks does not
exclude the diagnosis as late onset of clubfoot does occur.
- Jeanty and co-workers (3)
describe two criteria for the diagnosis:
- Anteversion of the
foot.
- Metatarsal rays are
seen in the same plane, a medial to lateral plane that passes through the
tibia and fibula and is perpendicular to the tibia and fibula.
- Rounded angle between the
foot and lower leg (this sign may, however, be seen transiently in normal
fetuses and is thus not pathognomonic).
- Tibia/fibula and foot
(including toes) can be demonstrated simultaneously in their long axis
i.e. foot deviates medially and lies at right angles to the tibia and
fibula.
- Foot visualized in a plane
perpendicular to the lower leg and not perpendicular to it.
- Foot must not be in an
inverted position due to the confines of the uterus and is best diagnosed
when the foot is completely surrounded by amniotic fluid.
- This position must be
maintained for 10-30 minutes, as clubfoot may be transient. Follow up
scans should probably be obtained in all cases. This excludes the false
positive diagnosis of clubfoot.
Unilateral isolated clubfoot
|
|
|
|
|
|
|
- Diastrophic dysplasia.
- Osteogenesis imperfecta.
- Kniest dysplasia.
- Spondyloepiphyseal dysplasia congenita.
- Metatrophic dysplasia.
- Mesomelic dysplasia (Nievergelt type).
- Chondrodysplasia punctata.
- Larsen syndrome.
- TAR syndrome.
- Pena-Shokeir syndrome.
- Roberts syndrome.
- Arthrogryposis multiplex congenita.
- Campomelic dysplasia.
- Myelomeningocele.
- Atelosteogenesis.
- Smith-Lemli-Opitz syndrome.
- Moebius sequence.
- Zelweger syndrome.
- Maffulli N. Opinion:
Prenatal ultrasonographic diagnosis of talipes equinovarus: does it give
the full picture? Ultrasound Obstet Gynecol 2002;20:217-218.
- Bakalis S, Sairam S, Homfray
T et.al. Outcome of antenatally diagnosed talipes equinovarus in an
unselected obstetric population. Ultrasound Obstet Gynecol 2002;20:226-229.
- Jeanty P, Romero R, d'Alton
M et.al. In utero sonographic detection of hand and foot deformities. J
Ultrasound Med 1985;4(11):595-601.
